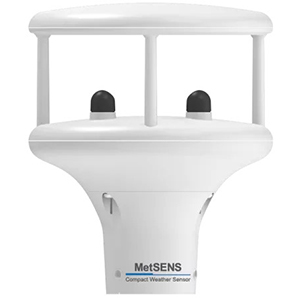

The MetSens200 is a compact ultrasonic weather sensor that measures wind speed and direction. Its built-in electronic compass enables accurate relative wind direction measurements without requiring specific sensor orientation, simplifying installation. The sensor provides WMO-compliant average wind speed, wind direction, and gust data, and integrates easily with Campbell Scientific data loggers and the MeteoPV Solar Resource Platform through multiple communication protocols.
Specifications
| Measurements Made | Wind direction and wind speed. |
| Sampling Rate | 1 Hz |
| Digital Communication Modes | Serial RS-232, RS-485, SDI-12, NMEA, Modbus, ASCII |
| IP Rating | 66 |
| Compliance |
|
| Operating Temperature Range | -40° to +70°C |
| Operating Voltage | 5 to 30 Vdc |
| Typical Current Drain @ 12 Vdc |
|
| Weight | 0.5 kg (1.1 lb) |
Wind Speed Measurement | |
| Measurement Range | 0.01 to 60 m s-1 |
| Accuracy |
|
| Resolution | 0.01 m s-1 |
| Starting Threshold | 0.01 m s-1 |
Wind Direction Measurement | |
| Measurement Range | 0° to 359° |
| Accuracy |
|
| Resolution | 1° |
Compass | |
| Measurement Range | 0 to 359° |
| Resolution | 1° |
| Units of Measure | Degrees |
| Accuracy | ±3° |
