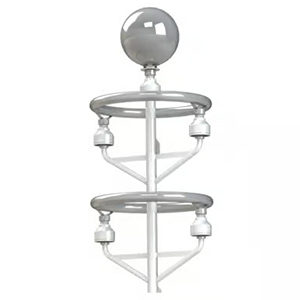

The BTD-350 Thunderstorm Detector is an advanced lightning detection sensor designed to provide early warning of approaching thunderstorms and overhead lightning risks. Using a unique quasi-electrostatic detection principle, it accurately detects both cloud-to-cloud and cloud-to-ground lightning up to 83 km away with an exceptionally low false alarm rate.
Specifications
|
Parameter |
Specification |
|
Detects |
Cloud-to-cloud, cloud-to-ground and intra-cloud lightning discharges |
|
Output |
Ethernet or Serial data (RS422) |
|
Range |
83 km (51 statute miles) |
|
Detection efficiency |
95% for single lightning flash (any type) |
|
99% for storm with 2 flashes |
|
|
99.9% for storm with 3 flashes |
|
|
For flashes within 56 km |
|
|
False alarm rate |
<2% |
|
Range Measurement |
0 to 20 km ± 5 km |
|
Error |
20 to 83 km ± 10 km |
|
Maximum flash rate |
120 per minute |
|
Time of flash |
Nearest 10 ms (internal clock) |
|
Measurement principle |
Passive, quasi-electrostatic. No moving parts |
|
Direction (optional) |
Reported to nearest degree |
|
Sensor Power |
110 to 240 Vac 50–60 Hz Universal |
|
Operating Temperature |
-40°C to 60°C |
|
Operating Humidity |
5% – 100% RH |
|
Protection rating |
IP66 |
|
Certification & Compliance |
CE Certified |
|
EMC – General |
EN 61326:2013 |
|
EMC – Marine |
EN 60945:2002, Sections 9.2.2 & 9.2.3 |
|
Corrosion resistance |
EN 60945:2002, Section 8.12 |
|
EN 60068-2-52:1996 Test Kb |
|
|
Vibration |
EN 60945:2002, Section 8.7 |
|
EN 60068-2-6:2008, Test Fc |
|
|
Compliance with EN 50536:2011+A1:2012 for a Class 1 detector |
|
|
Performs in accordance with IEC 62793 for a Class A detector |
|
|
RoHS and WEEE compliant |
|
|
Weight (Sensor Head) |
25 kg |
Maritime Operations
Meteorological Networks
Renewable Energy
Industrial Monitoring
