Introduction to Sensor

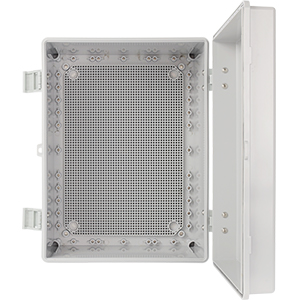

The 400 × 300 × 200 mm Waterproof Enclosure is a robust IP66-rated housing designed to protect electrical and electronic equipment from dust, water, and environmental exposure. Constructed from durable ABS plastic, it provides reliable protection for indoor and outdoor installations while ensuring easy equipment mounting and maintenance.
Specifications
Specifications
| Parameter | Specification |
|---|---|
| Product Type | Waterproof Electrical Enclosure |
| External Dimensions | 400 × 300 × 200 mm |
| Dimensional Tolerance | ±2 mm |
| Material | ABS Plastic |
| Color | Light Grey |
| Installation Type | Surface-Mounted |
| Operating Temperature | -20°C to +60°C |
| Protection Rating | IP66 (EN 60529) |
| Mounting Plate | Integrated perforated mounting plate |
| Closing Mechanism | Plastic snap buckles (2 pcs.) |
| Hinges | 2 plastic hinges included |
| Mounting Accessories | 4 additional mounting brackets included |
| Sealing | Integrated gasket in enclosure cover |
| Cable Entry | Seal hole provided |
| Protection Features | Waterproof, dustproof, and impact-resistant design |
| Application | Protection of electrical and electronic equipment |
Features
Applications
Security and Surveillance Systems
Utility and Infrastructure Projects
Outdoor Network Equipment
Monitoring and Automation Systems
