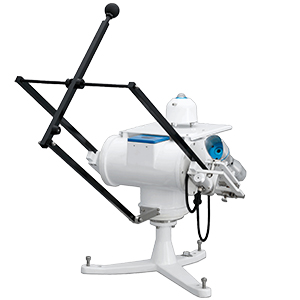

The STR-22G Sun Tracker is a compact, dual-arm solar tracking system designed for precise Global, Diffuse, and Direct Solar Irradiance measurements. Equipped with an integrated GPS receiver, 4-quadrant sun sensor, and Harmonic Drive® technology, it delivers accurate, fully automated sun tracking from sunrise to sunset. Its low-power operation, flexible sensor compatibility, and seamless DAQ integration make it ideal for research, meteorological, and solar energy applications.
Specifications
| Arms | 2 |
|---|---|
| Pointing accuracy Solar elevation: 0 to 87° | < 0.01° |
| Angle resolution | 0.009° |
| Rotation angle Zenith | -15 to 95° |
| Rotation angle Azimuth | 0 to 360° |
| Torque | 24 N⋅m |
| Payload side arms | 15kg |
| Sun sensor FOV | 30° |
| Ingress protection | IP65 |
| Operating temperature range | -40 to 50°C |
| Communication | RS-422 / 232C |
| Power Consumption | < 20W |
| Motor | Stepper motor |
| Driving technology | Harmonic Drive® |
| Tracking modes | Solar position / Free positioning |
| Tripod | Table tripod |
| Pyrheliometer mount | Adjustable / One sensor position |
| Cable length | 10m |
| Weight | 15.5kg (with tripod) |
Photovoltaic (PV) Performance Evaluation
Meteorological Climate Monitoring
Renewable Energy Research
Solar Resource Assessment
