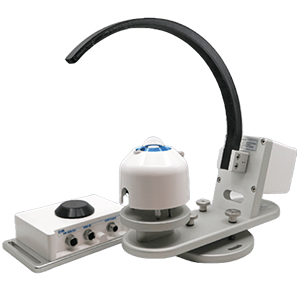

The MS-80SH Plus+ Solar Monitoring Station is a high-precision, cost-effective solution for measuring Global Horizontal Irradiance (GHI), Diffuse Horizontal Irradiance (DHI), and Direct Normal Irradiance (DNI) using the advanced EKO MS-80SH ISO 9060:2018 Class A spectrally flat, fast-response pyranometer with integrated dome heating. Featuring a motorized Rotating Shadow Band (RSB) system, it provides accurate multi-component solar measurements with a single sensor, offering reliable performance, low maintenance, and an efficient alternative to traditional sun tracker-based systems for solar and PV applications.
Specifications
| ISO 9060:2018 | Class A |
|---|---|
| Output | Modbus 485 RTU, 4-20 mA, or 0-1 V (100 Ω) |
| Logging values | Irradiance: GHI, DHI, DNI Meta data: T, RH, Tilt, Time, Long, Lat, solar elevation & azimuth |
| Operating temperature range | -20 to 70 °C |
| Wavelength Range | 285 – 3000 nm |
| Power supply | 12 to 24 VDC |
| Power Consumption | <6 W |
| Weight | 4.5 kg |
| Ingress protection | IP65 |
| Standard Cable Length | 10m (Optional lengths 20m, 30m, 50m) |
| Measurement interval | 15s (RSB mode) / 1s (TSB) |
Environmental Monitoring
Meteorological Stations
Solar Forecasting
Energy Research
