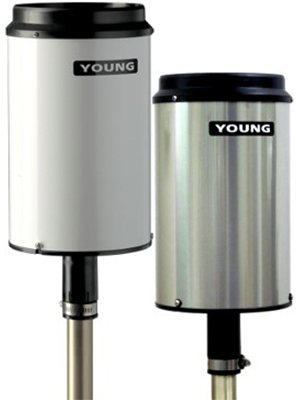

The 52203 Tipping Bucket Rain Gauge is a high-precision, unheated precipitation sensor designed for accurate rainfall measurement in moderate climates. Utilizing a proven tipping bucket mechanism, it delivers reliable and repeatable rainfall data with minimal maintenance. The optimized bucket design ensures efficient water release, reducing contamination and improving measurement accuracy. Featuring a 200 cm² catchment area and 0.1 mm resolution in accordance with WMO recommendations, the Model 52203 is ideal for meteorological, hydrological, agricultural, and environmental monitoring applications.
Specifications
| Catchment Area | 200 cm2 |
|---|---|
| Resolution | 0.1 mm per tip |
| Accuracy | 2% up to 25 mm/hr |
| Output | Magnetic reed switch (normally open) |
| Operating Temperature | -20 to +50°C (heated) |
| Power | 18 Watts @24VAC for heater only |
| Heater Thermostat Setpoint | 10°C ±3°C |
| Dimensions | Overall Height: 39 cm (15.4in) |
| Weight | 1.2 kg (2.6 lbs) |
| Shipping Weight | 2.7 kg (6 lbs) |
Meteorological
Climate Research
Irrigation Management
Flood Forecasting
