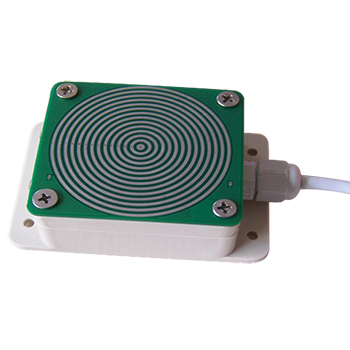

The NBL-W-RSS Rain and Snow Sensor is an intelligent precipitation sensor designed to detect rain and snow conditions accurately and reliably. It uses advanced surface grid electrode technology with an intelligent microprocessor to provide high sensitivity and stable detection. Its built-in automatic heating system helps remove accumulated rain and snow from the sensing surface, ensuring reliable operation in changing weather conditions.
Specifications
| Parameter | Specification |
|---|---|
| Measuring range | Detection of rain or snow presence |
| Power supply | DC 12V–24V |
| Output | Switch: □ normally open □ normally closed |
| Instrument cable length | 5 meters |
| Load capacity (contact capacity) | 5A, 250 VAC / 30 VDC |
| Working environment | Temperature: -40 ℃～80 ℃ Humidity: ≤100% RH |
| Rated voltage | 300 V |
| Product weight | 120 g |
| Product power consumption | 1.5 W |
Agricultural Monitoring
Hydrological Monitoring
Airport Monitoring
Environmental Monitoring
