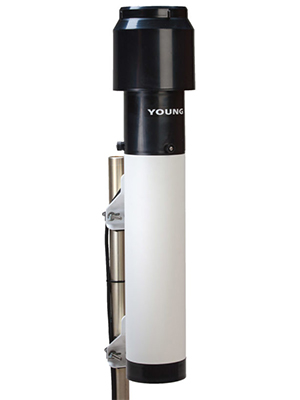

The 50203 Precipitation Gauge is a high-precision, unheated precipitation sensor designed to accurately measure rainfall in moderate climates. Featuring an innovative no-moving-parts design, it eliminates the mechanical wear and motion sensitivity associated with conventional tipping-bucket and weighing rain gauges, making it ideal for both fixed and mobile monitoring applications. The gauge uses a capacitive measuring chamber to convert precipitation into a precise linear voltage output, ensuring reliable data collection with minimal maintenance.
Specifications
| Catchment Area | 100 cm2 |
|---|---|
| Accuracy | ±1 mm |
| Signal Output | 0 to 5.00 VDC = 0 to 50 mm precipitation |
| Chamber Drain Time | 30 seconds approx |
| Operating Temperature | -20 to +50°C |
| Power Requirement | Measuring Circuit: 8 to 30 VDC unregulated |
| Heater Thermostat Setpoint | 10°C ±3°C |
| Dimensions | Overall Height: 65 cm (25.6 in) |
| Weight | 2.5 kg (5.5 lb) |
| Shipping Weight | 4 kg (8.8 lb) |
Meteorological
Climate Research
Marine Monitoring
Flood Forecasting
