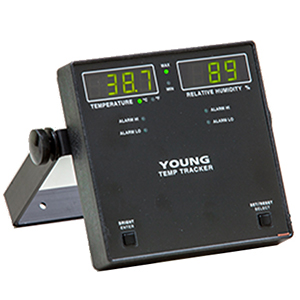

The 46203 Temp Tracker is a compact and easy-to-use display designed for continuous monitoring of temperature, relative humidity, and dew point. Compatible with YOUNG temperature and humidity probes, it provides clear real-time readings, along with minimum and maximum value tracking for efficient environmental monitoring. The display features programmable alarms, calibrated analog outputs, RS-485 communication, and adjustable brightness, making it an ideal solution for environmental monitoring applications.
Specifications
| Temperature Range | -50.0 to 150.0 °F |
|---|---|
| Relative Humidity Range | 0-100% |
| Input Signal | Temperature: 4-20mA = -50° to +50°C |
| Compatible Sensors | Model 41382LC2 (Temperature & RH) |
| Accuracy | Temperature ±0.1°C (0.2°F) |
| Display Resolution | Temperature: 0.1 °C, 0.1 °F |
| Voltage Outputs | 0-5 VDC = -50.0 to 50.0 °C |
| Serial Input/Output | RS-485, binary data block, 16 blocks per second |
| Alarm Relays | Normally open contacts for temperature and relative humidity. |
| Remote Displays | 16 max |
| Power Requirement | 12-30 VDC, 4.5 W |
| Dimensions | 144 mm (5.65 in) x 144 mm (5.65 in) x 36 mm (1.4 in) |
| Panel Cutout | 138 mm (5.43 in) x 138 mm (5.43 in) |
| Weight | 0.4 kg (1 lb) |
| Shipping Weight | 1.4 kg (3 lb) |
