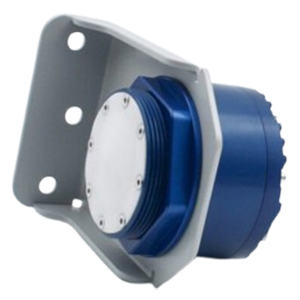

The Geolux LX80-O Oceanographic Radar Sensor is a compact, non-contact radar sensor designed for accurate measurement of tidal sea levels and wave parameters from coastal and offshore structures. With high-speed 10 Hz sampling, it provides reliable real-time wave analysis while requiring minimal maintenance due to its contact-free operation.
Specifications
Parameter | LX 80-O15 | LX 80-O30 | LX 80-O50 |
|---|---|---|---|
Measurement Range | 15 m | 30 m | 50 m |
Application Hydrology and Flood Monitoring | – | – | – |
Application Wastewater and Industrial Monitoring | – | – | – |
Application Irrigation Monitoring | – | – | – |
Application Snow Monitoring | – | – | |
Application Coastal and Ocean Monitoring | x | x | x |
Application Meteorology | – | – | – |
Antenna Beam Angle | 5° (±2.5°) | 5° (±2.5°) | 5° (±2.5°) |
Resolution | 0.5 mm | 0.5 mm | 0.5 mm |
Accuracy | ±2.0 mm | ±2.0 mm | ±2.0 mm |
Blind Zone | 0.2 m | 0.2 m | 0.2 m |
Frequency Range | W-band 80 GHz | W-band 80 GHz | W-band 80 GHz |
Radar Type | FMCW | FMCW | FMCW |
Mounting | M65 thread + nut | M65 thread + nut | M65 thread + nut |
Sampling Rate | 10 Hz | 10 Hz | 10 Hz |
Serial Protocols | RS-232 RS-485 / Modbus-RTU SDI-12 | RS-232 RS-485 / Modbus-RTU SDI-12 | RS-232 RS-485 / Modbus-RTU SDI-12 |
Analog Interface | 4-20 mA | 4-20 mA | 4-20 mA |
Connector Type | M12 circular 12-pin | M12 circular 12-pin | M12 circular 12-pin |
Cable | 10 m cable included | 10 m cable included | 10 m cable included |
Input Voltage | 9 to 27 VDC | 9 to 27 VDC | 9 to 27 VDC |
Power Consumption | 1.85 W – operating mode 0.15 W – standby mode 0.03 W – sleep mode | 1.85 W – operating mode 0.15 W – standby mode 0.03 W – sleep mode | 1.85 W – operating mode 0.15 W – standby mode 0.03 W – sleep mode |
Maximal Current | < 470 mA | < 470 mA | < 470 mA |
Operating Temperature Range | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C |
Enclosure Material | Anodized aluminium Stainless steel (optional) | Anodized aluminium Stainless steel (optional) | Anodized aluminium Stainless steel (optional) |
Enclosure Dimensions | Φ 65 mm x H 78 mm | Φ 65 mm x H 78 mm | Φ 65 mm x H 78 mm |
Enclosure Protection Class | IP68 | IP68 | IP68 |
Weight (without cable) | 500 g – aluminium enclosure 1200 g – stainless steel enclosure | 500 g – aluminium enclosure 1200 g – stainless steel enclosure | 500 g – aluminium enclosure 1200 g – stainless steel enclosure |
