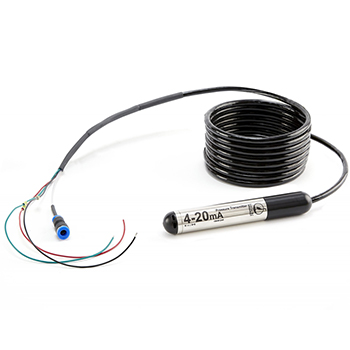

The 4–20 mA Pressure Transmitter is designed for continuous and accurate water level monitoring in tanks, wells, rivers, chambers, and other water management systems. It integrates easily with existing SCADA systems, digital displays, and third-party data loggers, enabling real-time water level measurement and monitoring.
Specifications
|
Specification |
Details |
|---|---|
Performance |
|
|
# of Data Points |
N/A |
|
Download Speed |
N/A |
|
Accuracy %FS |
+/- 0.05%FS |
|
Stability %FS/Year |
+/-0.20 |
Performance |
|
|
Pressure Ranges |
10m/30ft, 30m/100ft, 60m/200ft, 120m/400ft |
|
Overpressure Rating |
2X |
|
Operating Temperature |
-20°C to 80°C |
|
Pressure Resolution |
0.001 |
|
Supply Voltage |
7.5VDC – 35VDC |
|
Expected Battery Life |
N/A |
|
Warranty |
2 Years |
Physical Characteristics |
|
|
Wetted Material |
316 SS & Delrin |
|
O-Rings |
Rubber Buna |
|
Transducer |
316 SS Piezoresistive Silicon |
|
Weight |
170g (.37lbs) |
|
Length |
14.5cm (5.7″) |
|
Diameter |
22mm (.9″) |
Vented Direct Read Cable |
Polyurethane Jacketed |
