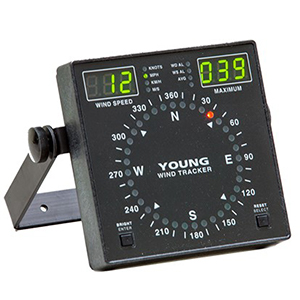

The 06201 Wind Tracker is a compact and feature-rich wind speed and direction display designed for real-time environmental monitoring. Compatible with most YOUNG wind sensors (excluding voltage output models), it provides clear visualization of instantaneous wind speed, maximum wind gusts, and wind direction through a bright, multicolored LED compass display.
Specifications
| Wind Speed Range | 0-224 mph |
|---|---|
| Wind Direction Range | 0-360° |
| Voltage Outputs | 0-5 VDC = 0-100 m/s |
| Serial Input/Output | Proprietary binary I/O for master-remote display |
| Alarm Relays | Normally open contacts for wind speed and wind direction |
| Remote Displays | 16 max |
| Power Requirement | 12-30 VDC, 4.5 W |
| Dimensions | 144 mm (5.65 in) x 144 mm (5.65 in) x 36 mm (1.4 in) |
| Panel Cutout | 138 mm (5.43 in) x 138 mm (5.43 in) |
| Weight | 0.4 kg (1 lb) |
| Shipping Weight | 1.4 kg (3 lb) |
Meteorological & Weather Stations
Marine & Coastal Monitoring
Wind Resource Assessment
Environmental Monitoring Systems
