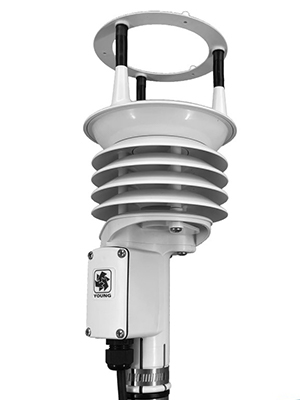

ResponseONE™-Pro Weather Transmitter (93000)

Introduction to Sensor

The ResponseONE-PRO™ Weather Transmitter is a compact, all-in-one weather station that accurately measures wind speed, wind direction, atmospheric pressure, relative humidity, and air temperature in a single rugged instrument. Its innovative field-serviceable sensor module allows users to quickly replace or recalibrate internal sensors on-site, minimizing downtime and eliminating the need to return the unit to the manufacturer. Built with corrosion-resistant materials, the transmitter offers multiple serial communication options for seamless integration with weather stations, marine systems, data loggers, and industrial monitoring networks.

Specifications

Wind Speed	Range: 0–70 m/s (156mph) Resolution: 0.01 m/s Accuracy: ±2% or 0.3 m/s (0–30m/s), ±3% (30 – 70 m/s)
Wind Direction	Azimuth Range: 0-360° Resolution: 0.1° Accuracy: ±2°
Temperature	Range: -40 to +60°C Resolution: 0.1°C Accuracy: ±0.3°C (-20 to +50°C), ±0.7°C (other)
Relative Humidity	Range: 0–100% Resolution: 0.1% Accuracy: ±2% (5-95%)
Atmospheric Pressure	Range: 500–1100 hPa Resolution: 0.1 hPa Accuracy: ±0.3 hPa (0 to +60°C), ±1.0 hPa (-40 to 0°C)
Electronic Compass	Range: 0–360° Resolution: 0.1° Accuracy: ±2°
Serial Output (selectable)	Interface: RS-232, RS-485/422, SDI-12 Formats: NMEA, SDI-12, ASCII (polled or continuous) Baud Rates: 1200, 4800, 9600, 19200 and 38400
Power Requirement	Voltage: 10–30 VDC Current: 7 mA @ 12 VDC typical, 80 mA max
EMC Compliance	FCC Class A digital device, IEC standard 61326-1
Operating Temperature	-40 to +60°C
Protection Class	IP65
Removable Bird Spikes	Included
Dimensions	Overall height: 28.3 cm (11.1 in) Diameter: 13.5 cm (5.3 in) Mounting: 34 mm (1.34 in) diameter (standard 1 inch pipe)
Weight	0.7 kg (1.5lb)
Shipping Weight	1.6 kg (3.5lb)
