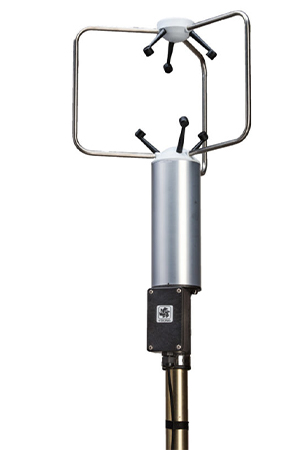

The YOUNG Model 81000V Ultrasonic Anemometer is a high-precision, maintenance-free sensor designed to measure horizontal and vertical wind speed, wind direction, and environmental data with exceptional accuracy. Utilizing advanced ultrasonic technology and three pairs of opposing transducers, it delivers reliable wind measurements without moving parts, ensuring long-term performance and minimal maintenance. Its rugged, corrosion-resistant construction is built to withstand harsh outdoor conditions, while factory wind-tunnel calibration guarantees dependable results.
Specifications
| Wind Speed | Range: 0 to 40 m/s (0 to 90 mph) |
|---|---|
| Wind Direction | Azimuth Range: 0 to 360° |
| Speed of Sound | Range: 300 to 360 m/s |
| Sonic Temperature | Range: -50 to 50°C |
| Voltage Inputs | 0 to 5000 mV, V1 & V2 |
| Serial Outputs | User Programmable |
| Power Requirement | 12 to 24 VDC, 110 mA |
| Operating Temperature | -50 to +50°C |
| Dimensions | Overall height: 56 cm (22.0 in) |
| Weight | 1.7 kg (3.8 lb) |
| Shipping Weight | 4.5 kg (10 lb) |
Wind Resource Assessment
Marine & Coastal Monitoring
Environmental Monitoring Systems
Meteorological & Weather Stations
