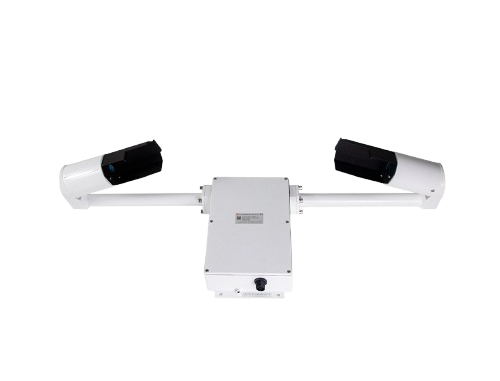

The Visibility and Present Weather Sensor BS300-10 utilizes an advanced forward scatter measurement principle combined with a unique optical design to deliver highly accurate and reliable visibility data in all weather conditions. With a standard measurement range from 10 meters to 10 kilometers — extendable up to 75 kilometers — the sensor is engineered using robust aluminum construction, making it ideal for demanding road and aviation applications.
Specifications
|
Item |
Technical Specification |
|
Type |
Type A |
|
Measurement Range |
10m-10km(Typ.) , 10m-30km,10m-75km |
|
Shell Material |
Aluminum alloy |
|
Weight(unpacked) |
3kg |
|
Weather Phenomenon |
optional |
|
Measurement elements of weather phenomenon module |
Identify four different types of precipitation: drizzle, light rain, moderate rain, and heavy rain Identify types of states such as rain, snow, thin fog (smoke), thick fog (smoke), etc measure the intensity of precipitation: Measurement range: 0-200mm/h Resolution: 0.1mm (rainfall) |
|
Measurement principle |
Forward scatter |
|
Resolution |
1m |
|
Accuracy |
±10%(10m-10km) |
|
Data update rate |
10s |
|
Supply |
12-24VDC |
|
Output |
RS485,RS232 |
|
Power consumption |
≤5W |
|
Installation |
Hoop installation |
|
Lifetime |
>10 Years |
|
Operating temperature |
-40℃-+50℃@0-100%RH( No condensation) |
Environmental Monitoring
Bridge Road
Intense Traffic Area
Rain & Snow-Prone Areas
