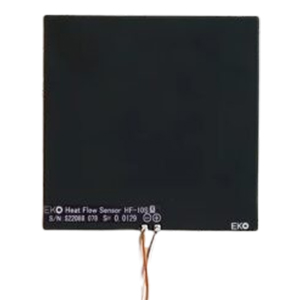

The HF-10S Thin Plate Heat Flux Sensor is an ultra-thin, high-performance sensor designed for accurate heat flux measurements in research and industrial applications. With a thickness of just 0.5 mm, it offers extremely low thermal resistance, making it ideal for installation between material layers without affecting natural heat flow. Designed for manufacturing control, thermal insulation analysis, and engineering research, the HF-10S delivers reliable and consistent measurements.
Specifications
| Response time 95% | 25 sec |
|---|---|
| Sensitivity (Approx.) | 12 µV/W/m² |
| Thermal resistance | 0.0016 °C/(W/m2) |
| Electric resistance (Room Temp.) | 50 to 100 Ω |
| Operating temperature range | -20 to 120 °C |
| Cable length | 10m ( 20m / 30m ) |
| Dimensions mm | 100 (L) x 100 (W) x 0.5 (H) |
| Weight (without cable) | 0.012 kg |
| Substrate | Glass epoxy |
| Cladding | Epoxy |
Thermal Insulation Monitoring
Manufacturing Process Control
Building & Construction Research
Industrial Heat Transfer Analysis
